# Custom Actor Shader

When rendering most of the actors (characters and backgrounds, except generic ones) a special shader is used to handle semi-transparency overdraw and support various transition effects.

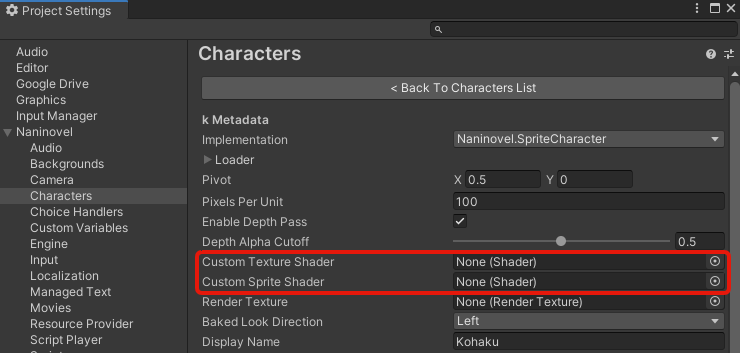

You can override the default shader by assigning a custom one to Custom Texture Shader property available in the actor configuration menu.

Be aware, that the shader is expected to have specific properties; check default shader Naninovel/Resources/Naninovel/Shaders/TransitionalTexture for a reference.

When actor is represented as a sprite on a scene, Custom Sprite Shader property is available (the case for non-generic implementations when they're not rendered to texture). By default, a simple unlit transparent shader is used; in case you want to implement lighting or surface effects, assign a custom shader to the property.

EXAMPLE

Check the project on GitHub for an example on how to create and use texture shader for adding custom transition effects and sprite shader with lighting and self-illumination support to simulate time of day for a background actor: github.com/Naninovel/CustomShader.

Last Updated: February 24, 2021
